Curved Guides and Rails

Curviline

Features


  • Various solutions are available: hardened raceways for long lifepan and stainless steel for corrosion resistance.
  • Various radius options, both constant and variable, are available to meet a wide range of application needs.
  • The slider features ball bearing rollers that are lubricated for life. It maintains the desired preload throughout the entire layout.

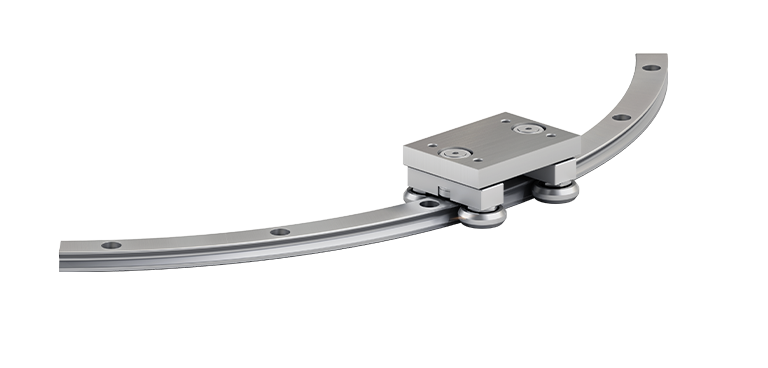

Curviline-Curved-Guide
Linear Rails - Curviline
Linear Rails - Curviline

Available Versions

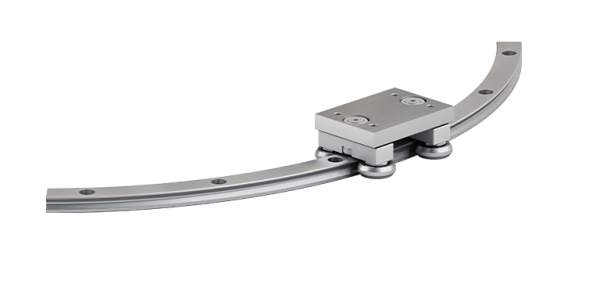

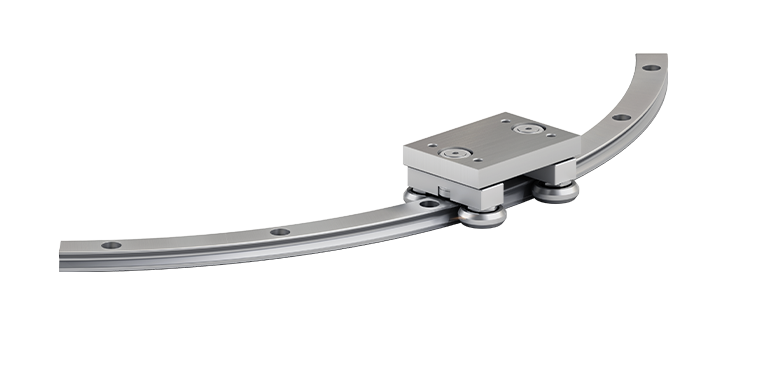

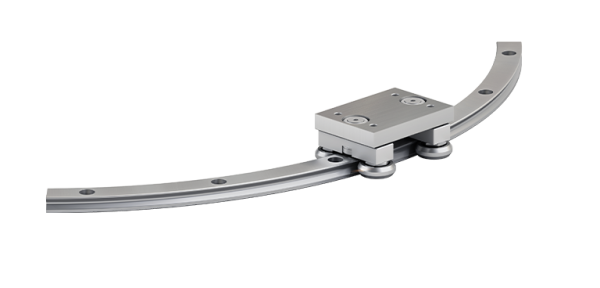

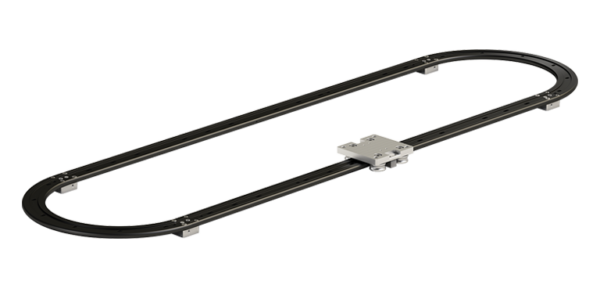

Curviline Curved Guides

Curviline

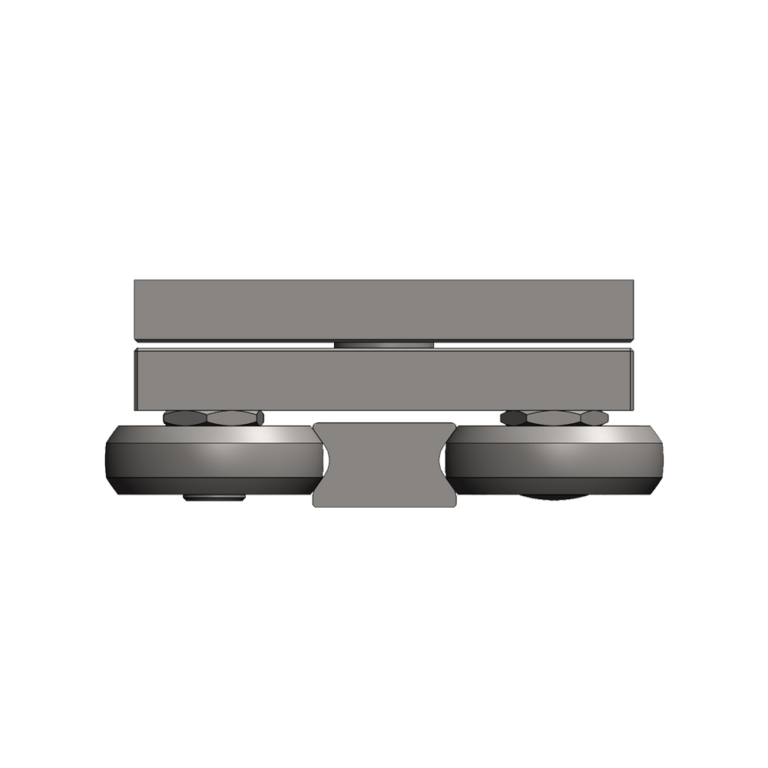

Curviline rail roller guide.
Select the size
CAD File Datasheet
Curviline Curved Guides

Stainless steel Curviline

Curvilinear stainless steel roller guide.
Select the size
CAD File Datasheet
Curviline Curved Guides

Hardened Curviline

Hardened curvilinear roller guide.
Select the size
CAD File Datasheet
