2D Multi-Axis

We build it for you

Versatile multi-axis systems designed starting from your specific needs.

Different Y/Z configurations available and different driving systems for any application.

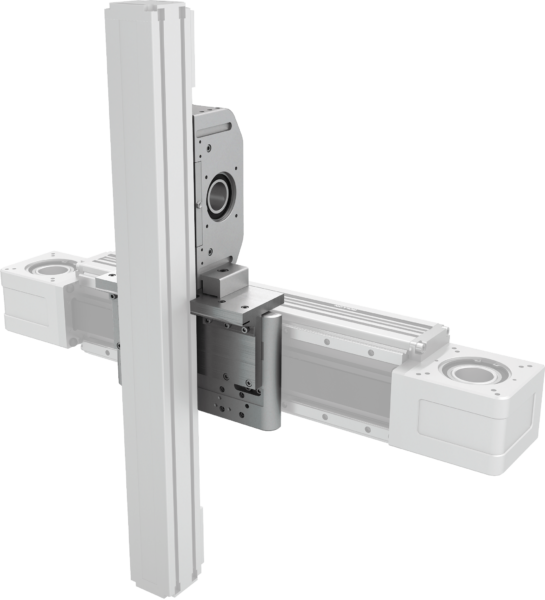

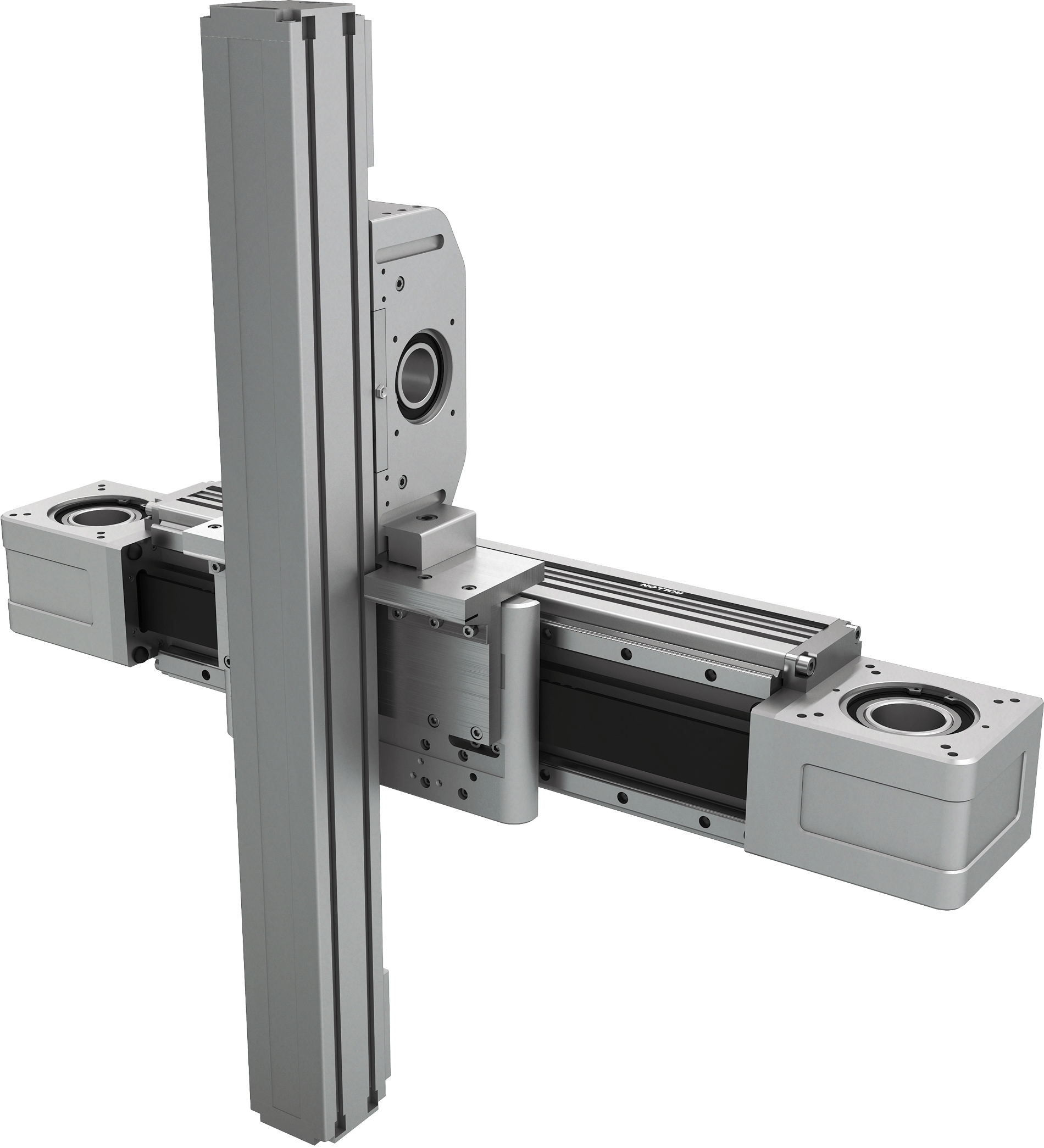

Select your YZ Portal (Aluminium)



Smile

Ready to use

All the advantages of a ready made solution designed for you with our 45 years expertise in linear motion:
• engineered and tested solution
• short assembly time and service
• low maintenance and additional warranties
Multi Axis
Infinity

Multiple Y/Z configurations

Our Multi-Axis solution can be assembled in several
different configurations, such as:
• Y Belt / Z Belt
• Y Belt / Z Screw
• Y Screw / Z Screw
• Y Rack / Z Rack
icon usage as linear guide or actuator

Different driving systems

• Belt for high dynamics
• Rack and Pinion for long strokes, heavy loads and independent carriages
• Ball screw for high precision and compactness
A

Fully accessorized

A large quantity of accessories is available, such as:
• energy chains
• safety systems
• nuts and dedicated plates for assembly
• lubrication systems
• proximity holders and cams



See technical details and
select your 2D Multi-Axis.

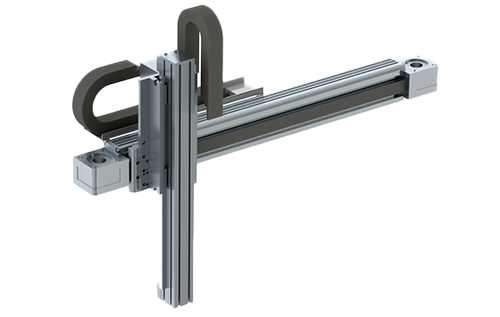

YZ RSMART+ZCH

Rigid Y-Z portal for moderate to high load.

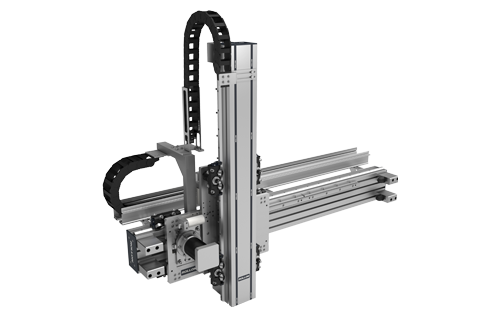

YZ PAR+PAR

Robust Y-Z Portal with Cam roller guides for long strokes application and payloads up to 800 Kg.

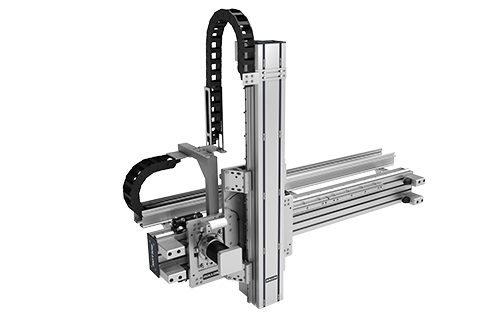

YZ PAR+PAS

Robust Y-Z Portal with Cam roller guides for long strokes application and payloads up to 800 Kg.

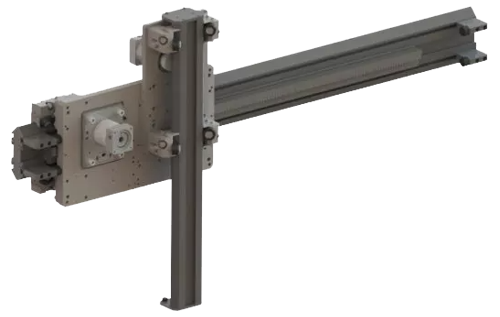

YZ SAR+SAR

Lightweight portal for long stroke application.

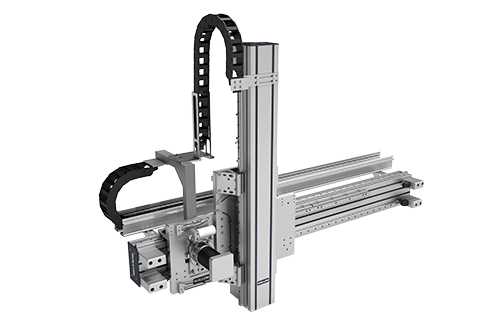

YZ PAS+PAS

Rigid and precise YZ portal with rack and pinion drives for long strokes and payloads up to 800 kg.

YZ TH+TH

YZ portal with ball screw drives. Repeatability within 5 µm

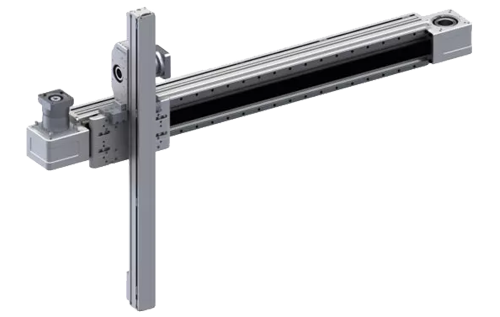

YZ RSMART+SSMART

YZ portal with economical design for moderate payloads in clean environments.

YZ RSMART+TH

YZ manipulator with rigid, precise vertical axis
