Curved guides

CLT track guide

CLT is a modular track that allows to create or remodel oval, rectangular and square circuits.

Designed to allow maximum flexibility, with CLT rails it is possible to easily achieve different configurations by combining sliders, curved rails – available in two radii (165 mm and 302.5 mm) – and straight rails, with maximum rail length of 2000 mm.

Select your CLT



Design freedom

Modularity

Stocked standardized rails that allow to create
various types of circuits or remodel existing ones.
Modular track guide

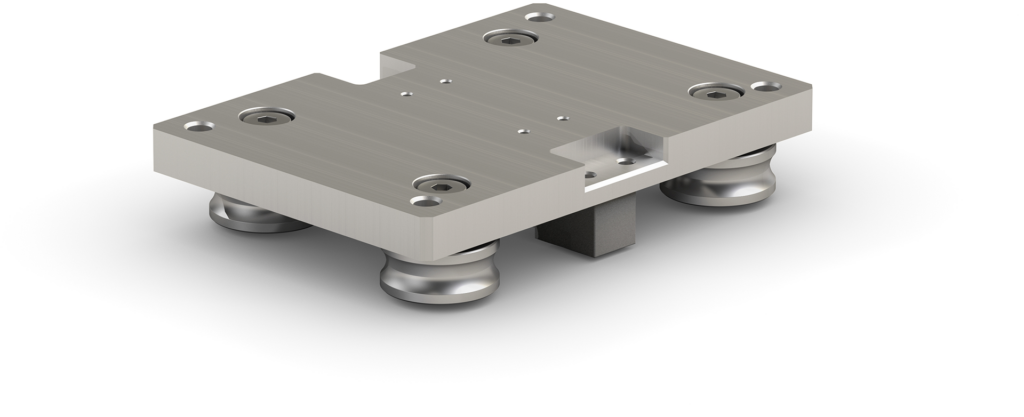

CLT-Carriage
icon high protection

Reliability in
dirty environments

The possibility of equipping CLT sliders with wipers
ensures optimal cleaning of the raceways.
Low maintenance

Resistance and
low maintenance

The nitriding heat treatment (60HRC) on the guides provides
high hardness and corrosion resistance and the wipers
allow very low maintenance over time.

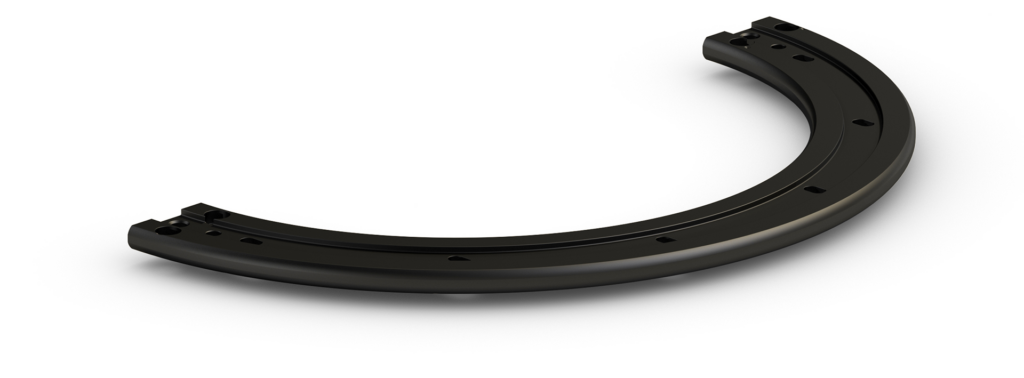

CLT-Nitrurated-Rail
High dynamics: V= 15m/s, A=10m/s2

Speed

Ability to reach speeds with high acceleration gradients.

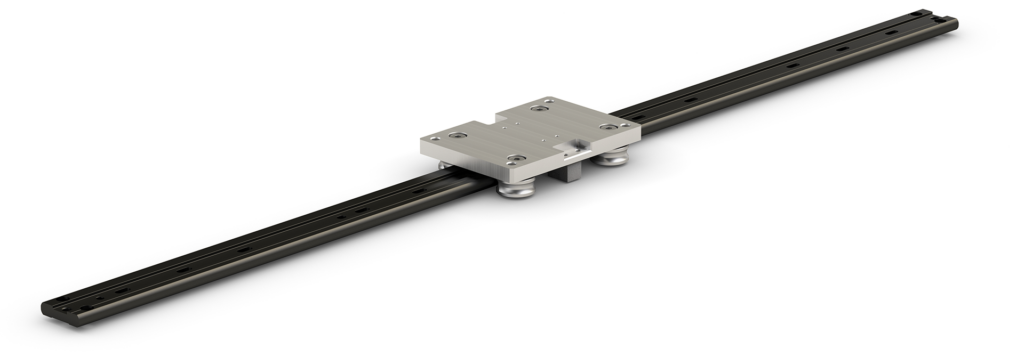

CLT-Straight-Rail

See technical details and
select your CLT.

Modular track guide

CLT - Circuit R165

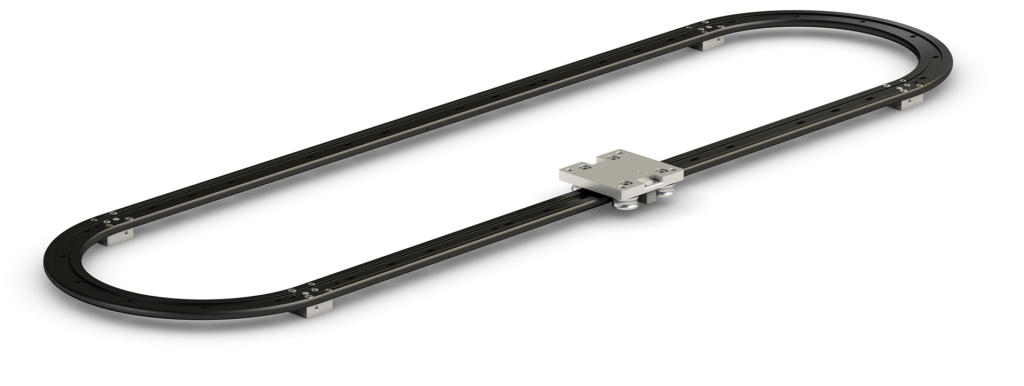

Configuration which combines sliders, straight rails and curved rails with radius 165mm.
